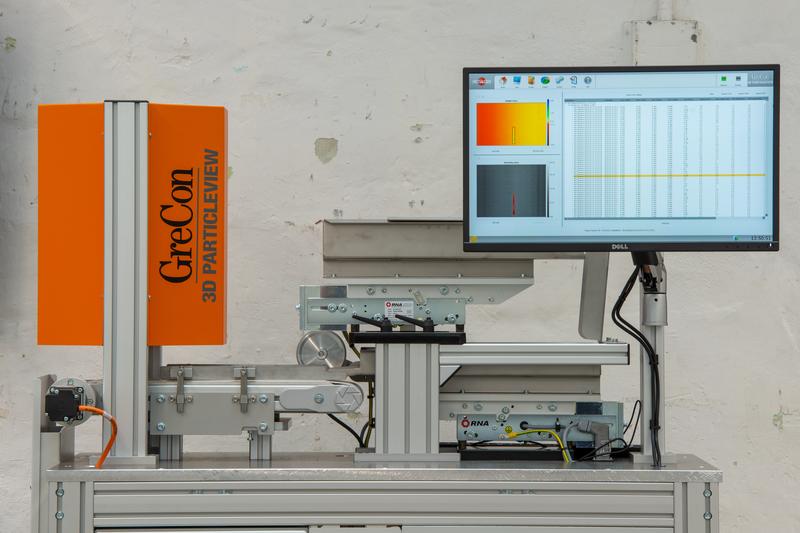

GreCon 3D PARTICLEVIEW

Laboratory particle analysis with laser technology

The 3D PARTICLE VIEW is a measuring unit for the obective assessment of the particle quality. The particle thickness is an important parameter for the mechanical characteristics of finished particleboards.
The ratio of particle surface to volume is the decisive parameter for the effectiveness of glue application.
Both parameters depend on the adjustment of the knife ring flaker and change through wear of the knife protrusion in the knife ring.

csm_DSC_5793_45afb21d21

BENEFITS AT A GLANCE

Measurement of entire particle geometry (length, width & thickness)

Reduction of material loss by screening thanks to a specific change of the knife ring flaker

Remote support with GreCon SATELLITE

Specific adjustment of the knife protrusion of the knife ring flaker

Saving of glue by reduction of the fine contents

Specific optimisation of the mechanical characteristics of the particleboard by production of the "optimal" particle geometry.

MEASURING METHOD

The particles to be measured that are taken preferably directly downstream to the knife ring flaker  are measured by specially matched vibratory conveyors and automatically placed on the measuring conveyor belt. The conveyor transports the particles into the measuring area where length, width and thickness (height) of the particles are measured by a line laser including a camera unit.

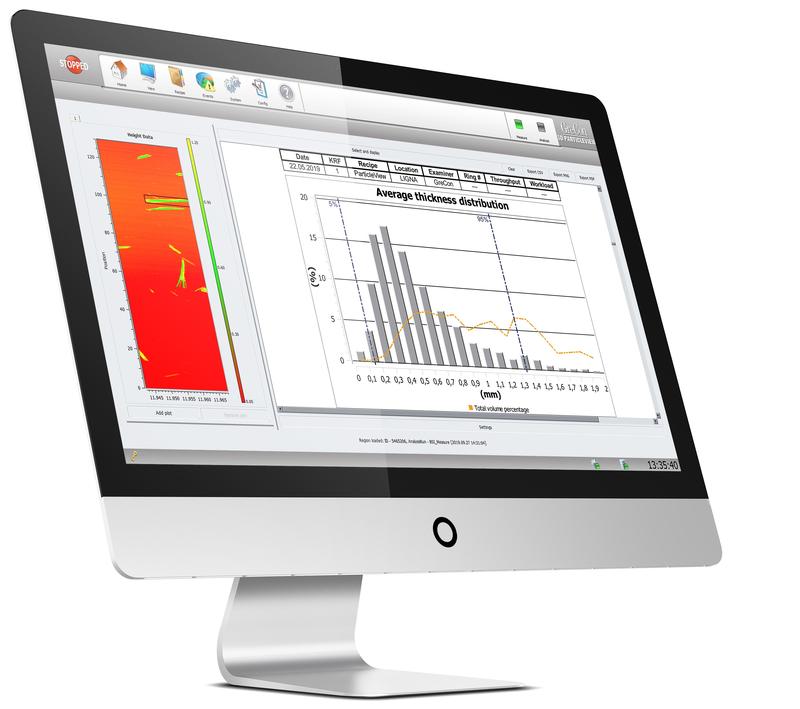

SOFTWARE FUNCTIONS AND VISUALISATION

  • General

    The ergonomically designed software based on the Windows operating system allows the operator to easily use the system. The recorded measured values are processed and presented in a clearly structured manner.

  • Measured Data

    Data output:

    Characteristics:
    – Representation of the distribution of the parameters determined (thickness, width, surface) for the entire sample quantity
    – Representation of the individual particle with the parameters determined



    Graphics:
    – Thickness distribution over the particle (thickness, width, length)
    – Distribution functions (based on the characteristic values or their ratio sizes) for the entire sample quantity
    – Volume weighted distribution of all material properties

  • Recipe Management

    The operation is very simple and menu-driven. The operator only needs to enter the limit from which particles are to be detected.

csm_3d_particleview_screenshot_02_158523351c

APPLICATION

wood particles

granulates

TECHNICAL DATA

  • Suppy
    Supply voltage 230 V ± 10 %
    Frequency 50 Hz / 60 Hz
    Mains type phase/neutral/protective conductor
    Power consumption     2000 VA
  • Place of Installation
    Places of installation laboratory
    Ambient temperature 20 to 35 °C
    Relative humidity non-condensing
    Space outside the production line, e.g. production control station
  • Measured Data
    Material type wood particles (huminity under 25%)
  • Resolution
    inspection width 130mm
    thickness 20 µm
    width 100 µm
    length 100 µm
    Minimal recognizable error size > 1 mm²
  • Interface
    OPC
    USB
    Ethernet
csm_csm_technical_icons_76fb63fb7d_01e273c8d4
